Titanium anode for water heater
18
People watching this product now!
Description
Product Parameters

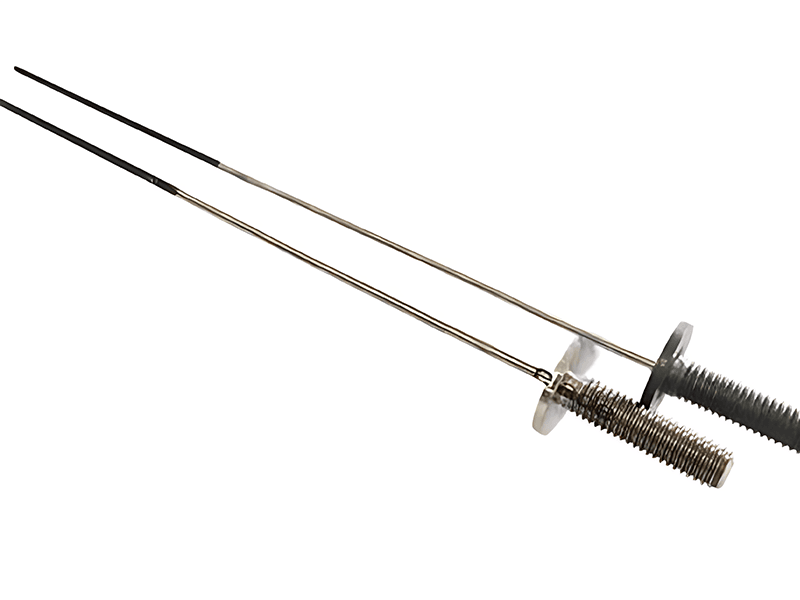

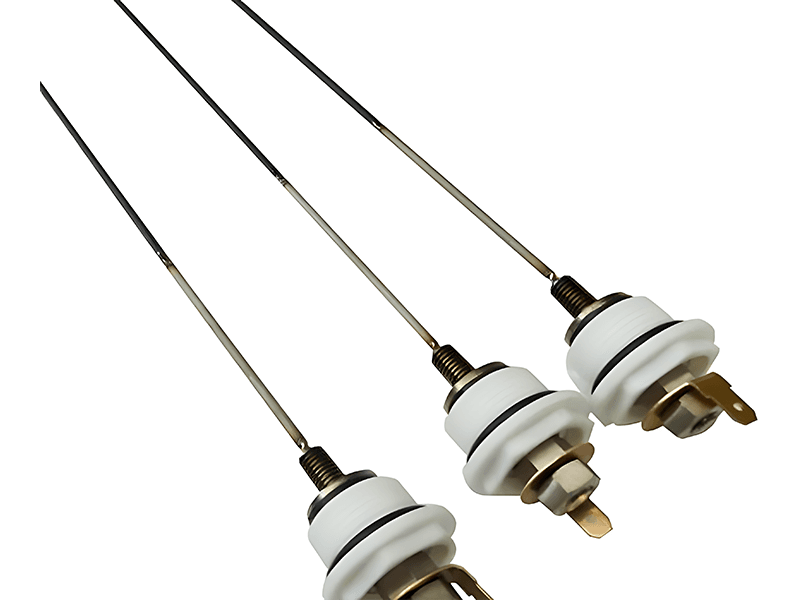

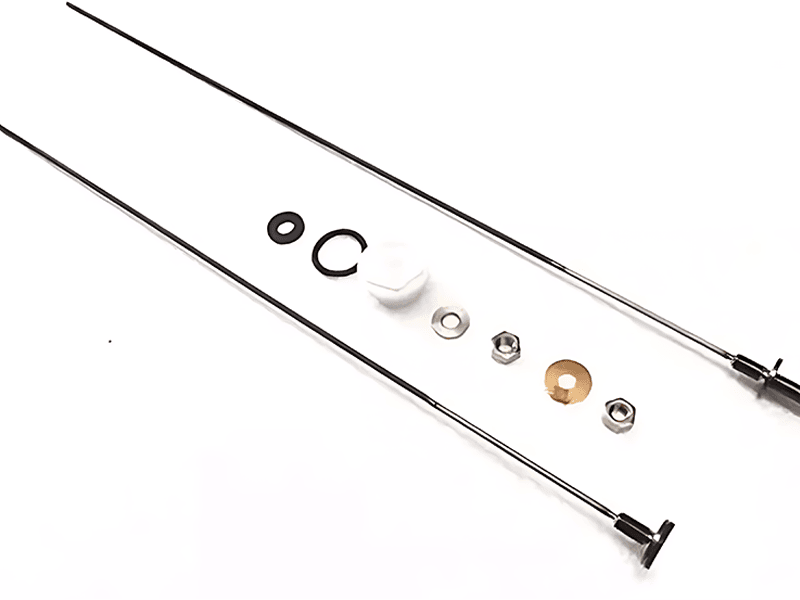

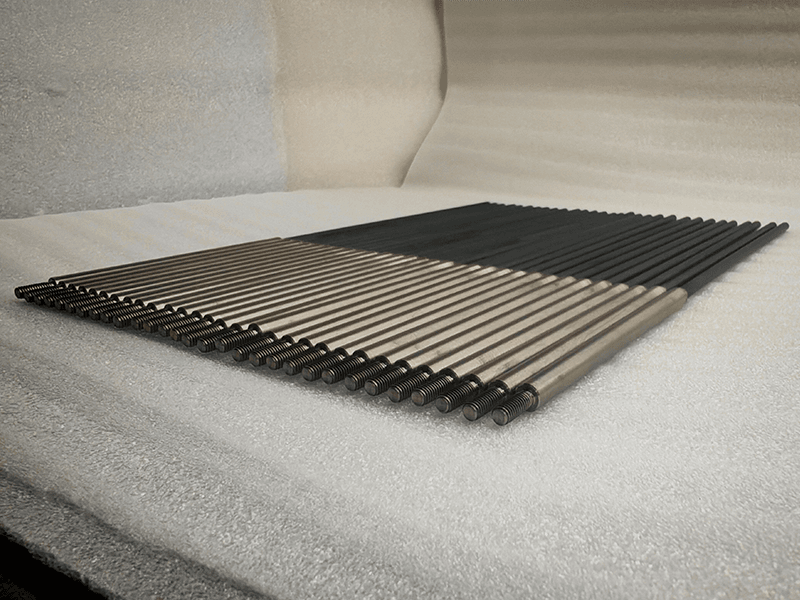

Titanium anode wire for water heaters is mainly used for cathodic protection of the inner tank of water heaters, and is the next generation of new anode products that sacrifice the anode “magnesium rod”.
| Name | Titanium anode rod for water heater |
|---|---|
| Material | TA1 |
| Product size | Φ 3.0*340mm / Φ 3.0 * 490mm or (according to the requirements of the customer’s drawings) |
| Current density range | ＜500A/㎡ |
| Temperature range | <60°C |
| Coating System | Ruthenium Iridium Coating |
| Coating material | RuO2+X or IrO2+X |
| Anode life expectancy | ＞10 years |
Coating System: Ruthenium Iridium Coating
Test Conditions
| System | Medium | Current Density (A/m²) | Temperature (°C) | Ruthenium iridium | 1mol/L H₂SO₄ | 20,000 | 40 ± 5 |
|---|
